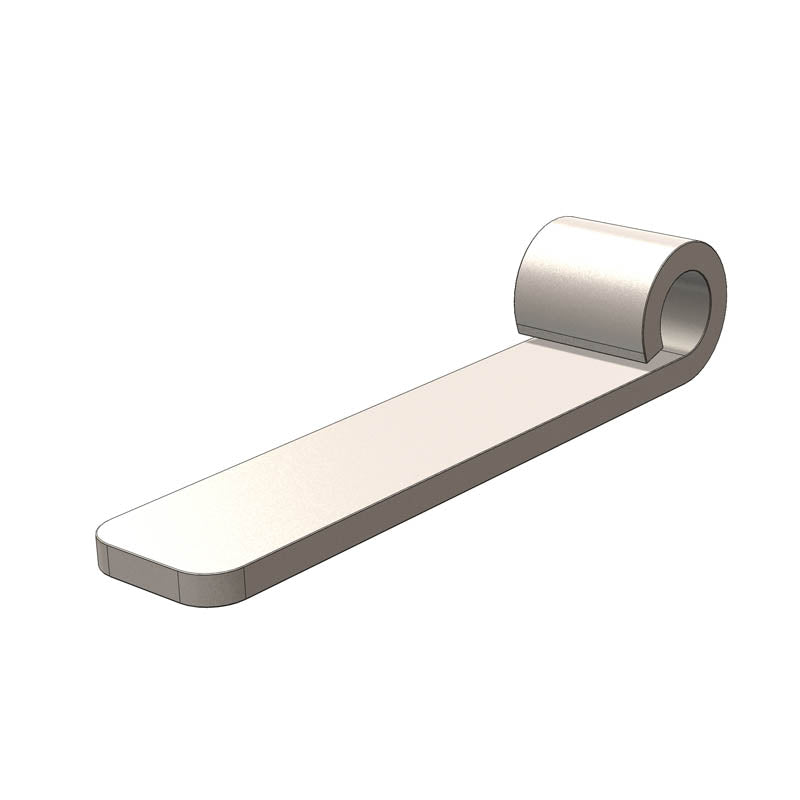

Sideboard Strap Hinge 100mm with Gudgeon and Bush
100mm Long Sideboard Strap Hinge with Gudgeon Pin and Bush, Zinc Plated. Ideal for Ute Tray Sideboards.
Can be Either welded or bolted. Strap is 100mm Long, cut down to size as required to suit your Tray Sides.

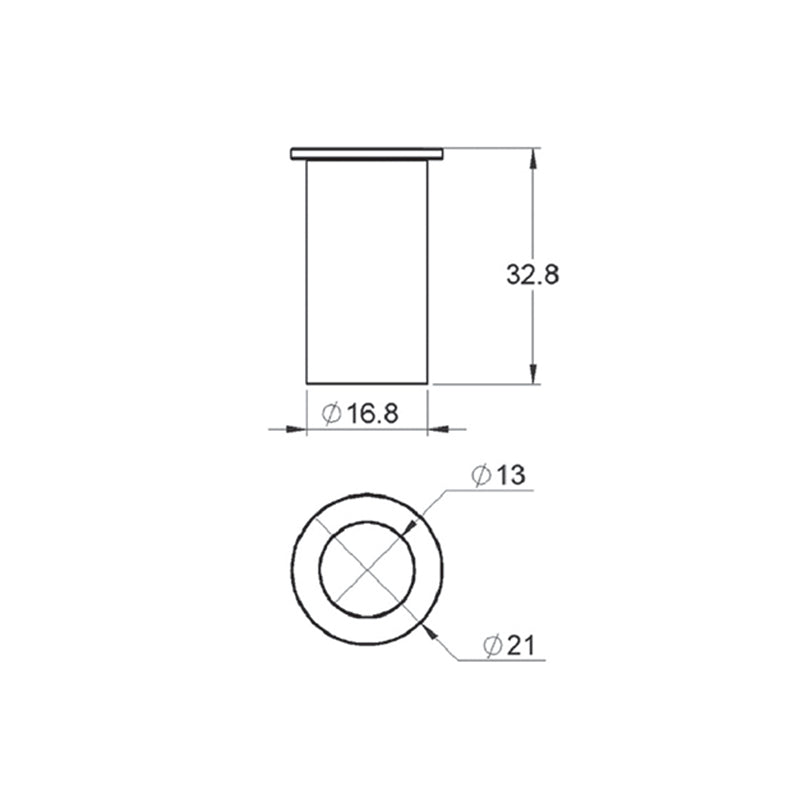

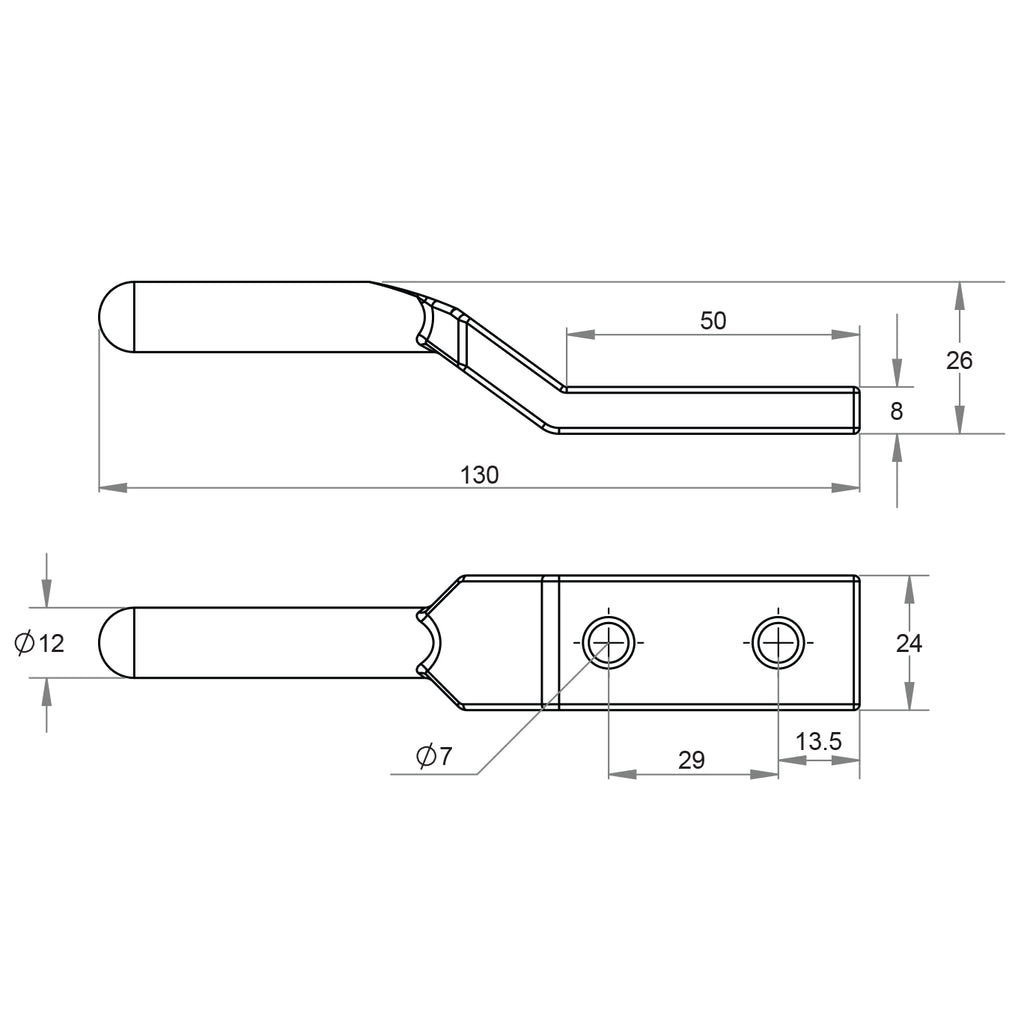

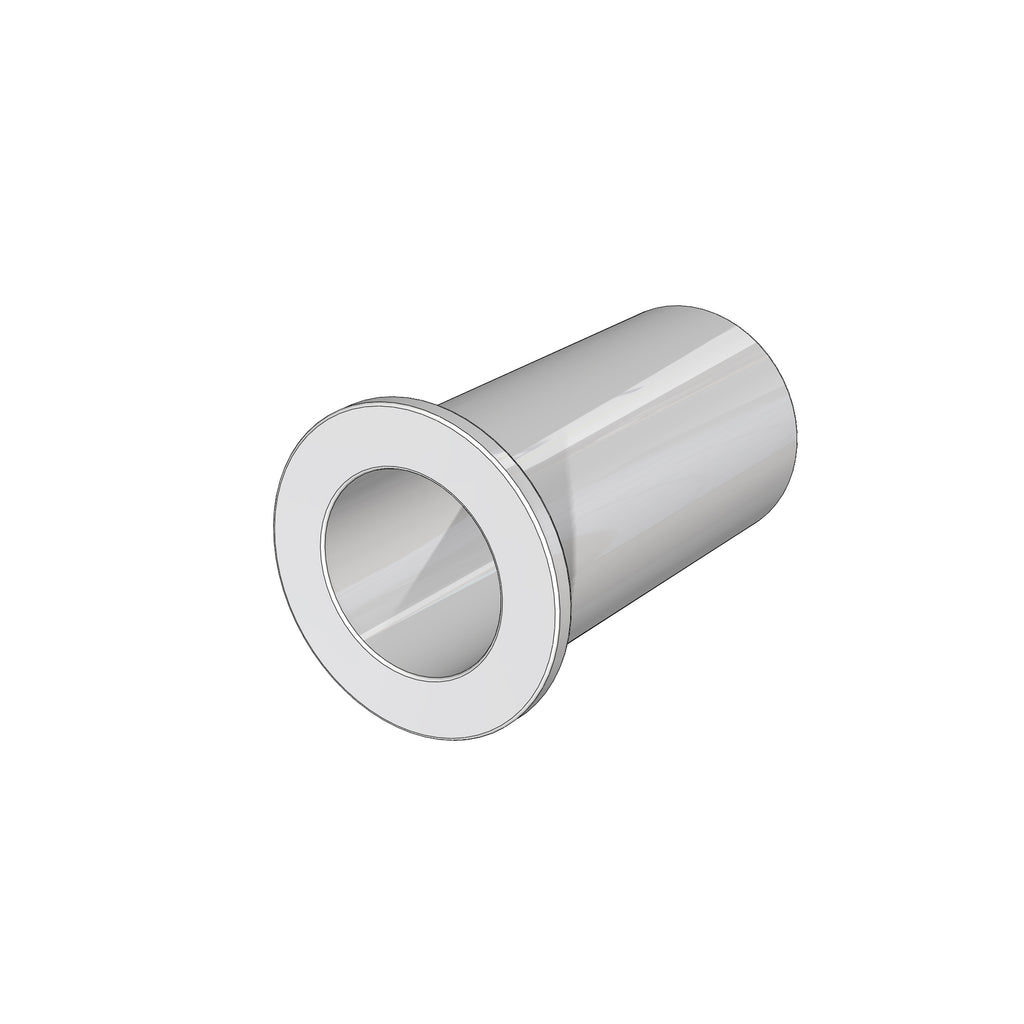

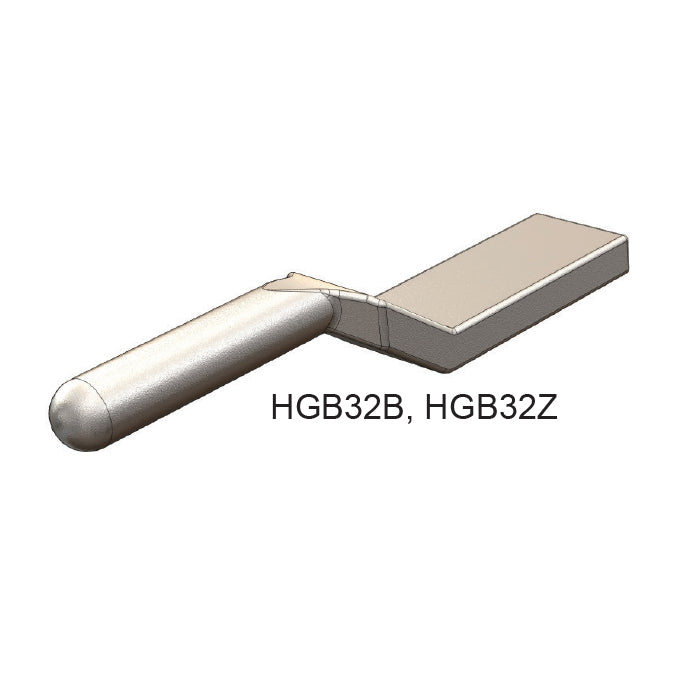

Assy consists of 1 x Strap, 1 x Gudgeon Pin, 1 x Nylon Bush

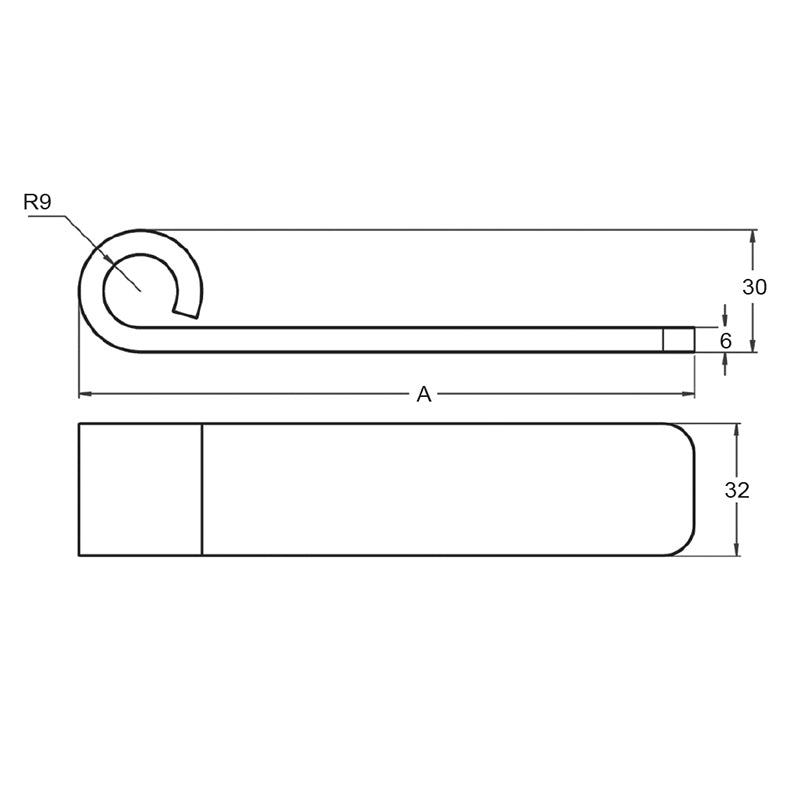

Length (A) – 100mm
Product Code: HSB100Z-HGB32Z-HB32
